Durable 3/8 Inch Beam Clamp - Heavy Duty Ductile Iron Construction for Construction, HVAC, and Pipe Support Systems
Free shipping on all orders over $50
7-15 days international
21 people viewing this product right now!
30-day free returns
Secure checkout
86792785
Description

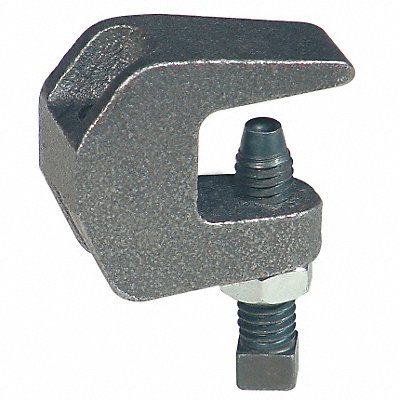

' Beam Clamp, C-Type, Rod Size 3/8 In., Max. Load (Lb.) 500 at Top, 250 at Bottom, Material Ductile Iron, Length (In.) 1-9/16, Thread Size (In.) 3/8-16, Metal Detectable Yes, For Use Under Roof Install w/Bar Joist Type Const Or For Attachment To The Top Or Bottom Flange Of Structural Shapes. Where The Vertical Hanger Rod Is Req To Be Offset From The Edge Of The Flange. The Thickness Of Joist Or Flange Does Not Exceed 3/4 In., Includes Set Screw And Locknut, Plain Finish '
Features
Price For Each Metal Detectable Yes Description/Special Features For Use Under Roof Install w/Bar Joist Type Const Or For Attachment To The Top Or Bottom Flange Of Structural Shapes. Where The Vertical Hanger Rod Is Req To Be Offset From The Edge Of The Flange. The Thickness Of Joist Or Flange Does Not Exceed 3/4"
Standards Federal Specification A-A-1192A (Type 19 & 23), WW-H-171-E (Type 23), ANSI/MSS SP-69, and ANSI/MSS SP-58 (Type 19 & 23). UL, ULC Listed and FM Approved. Item Beam Clamp Type C-Type Rod Size 3/8" Max. Load (Lb.) 500 at Top, 250 at Bottom Length (In.) 1-9/16 Includes Set Screw And Locknut Thread Size (In.) 3/8-16 Material Ductile Iron Finish Plain
Country of Origin (subject to change) United States
